4x5 Residence
Project Name
4x5 Residence
Typology
Low-rise Apartment Building
Location
Daiya, Kuwait
Year
2019
Plot Area
400 sq.m.
Status
Completed
Principal Architect
Muhannad Albaqshi
Design Team
Hamad Alkhaleefi, Sarah Malek
Project Manager
Sarah Malek
Construction Manager
Nabeel Awada
Construction
Massive Order
Photographs
Nelson Garrido

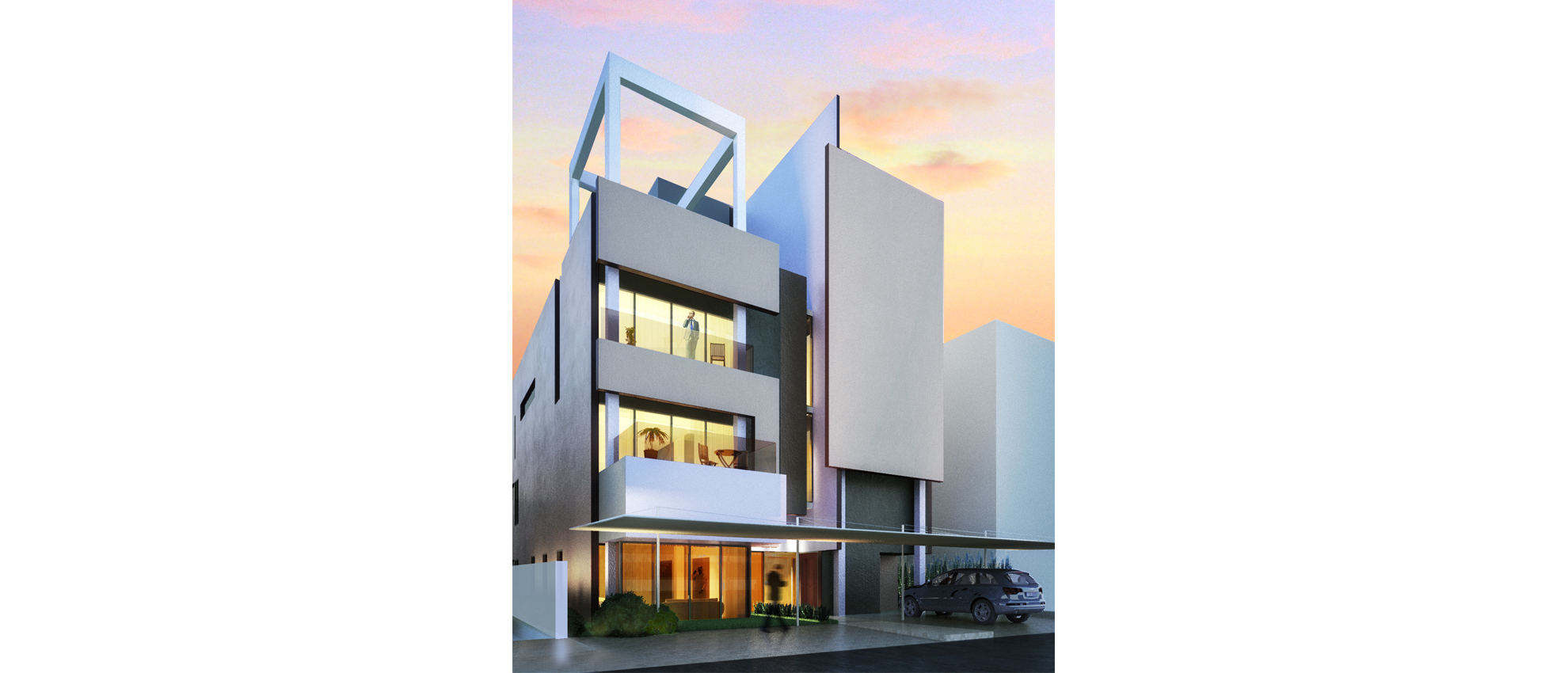

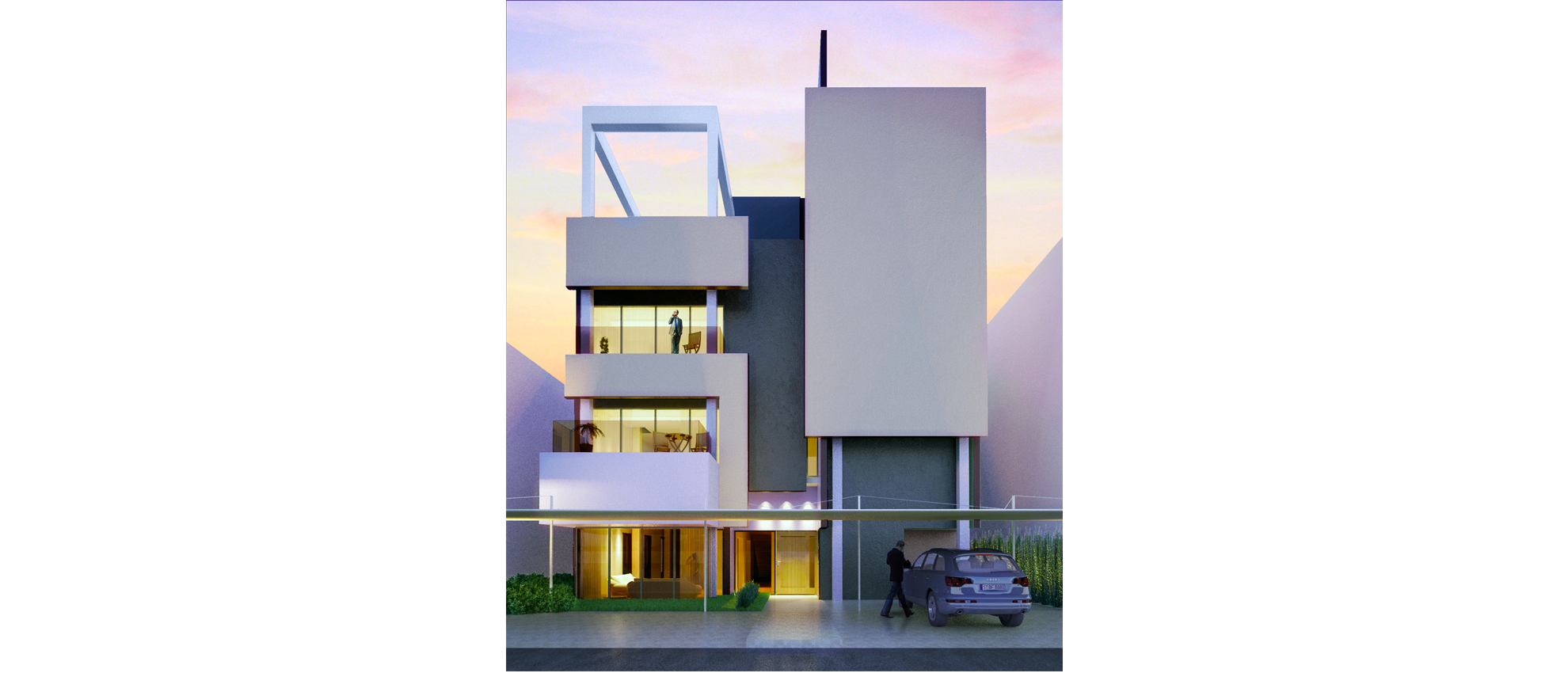

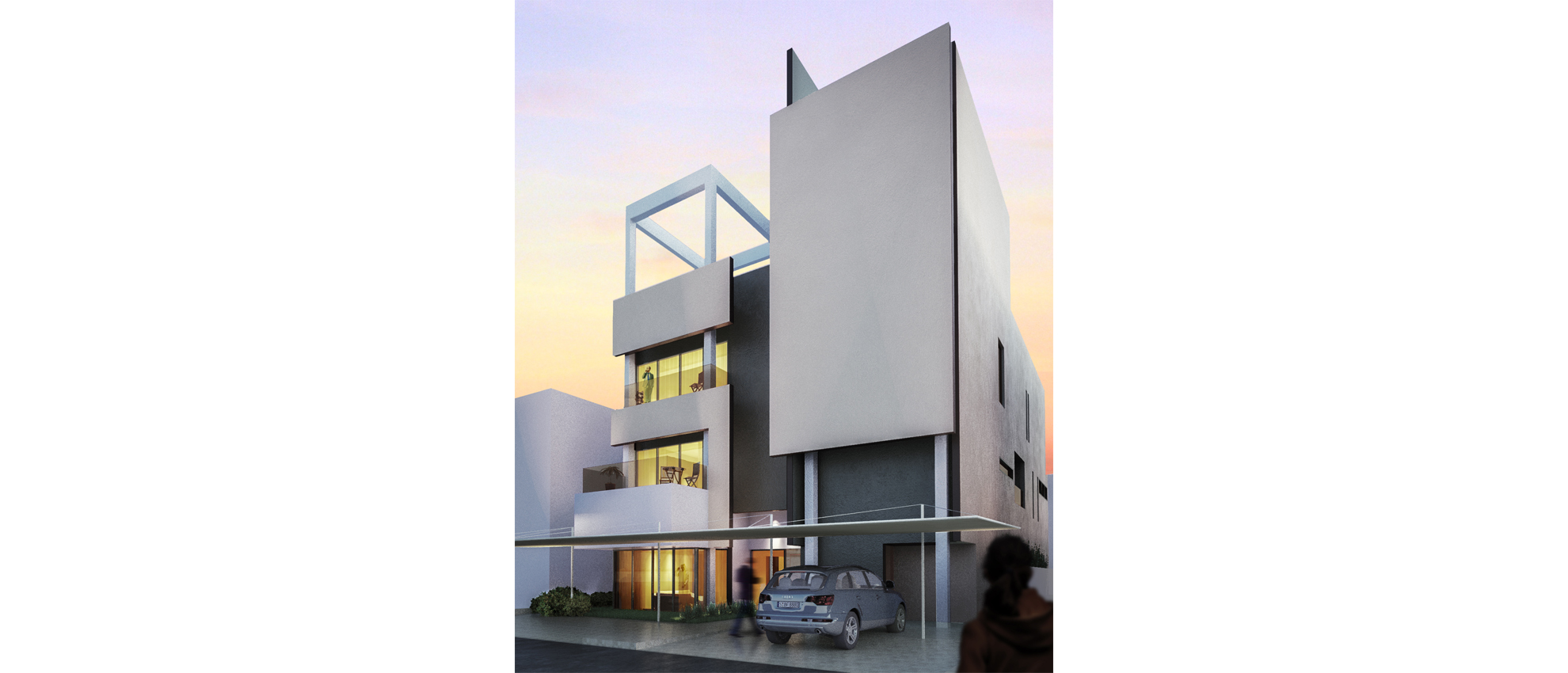

Render
Layali Najim

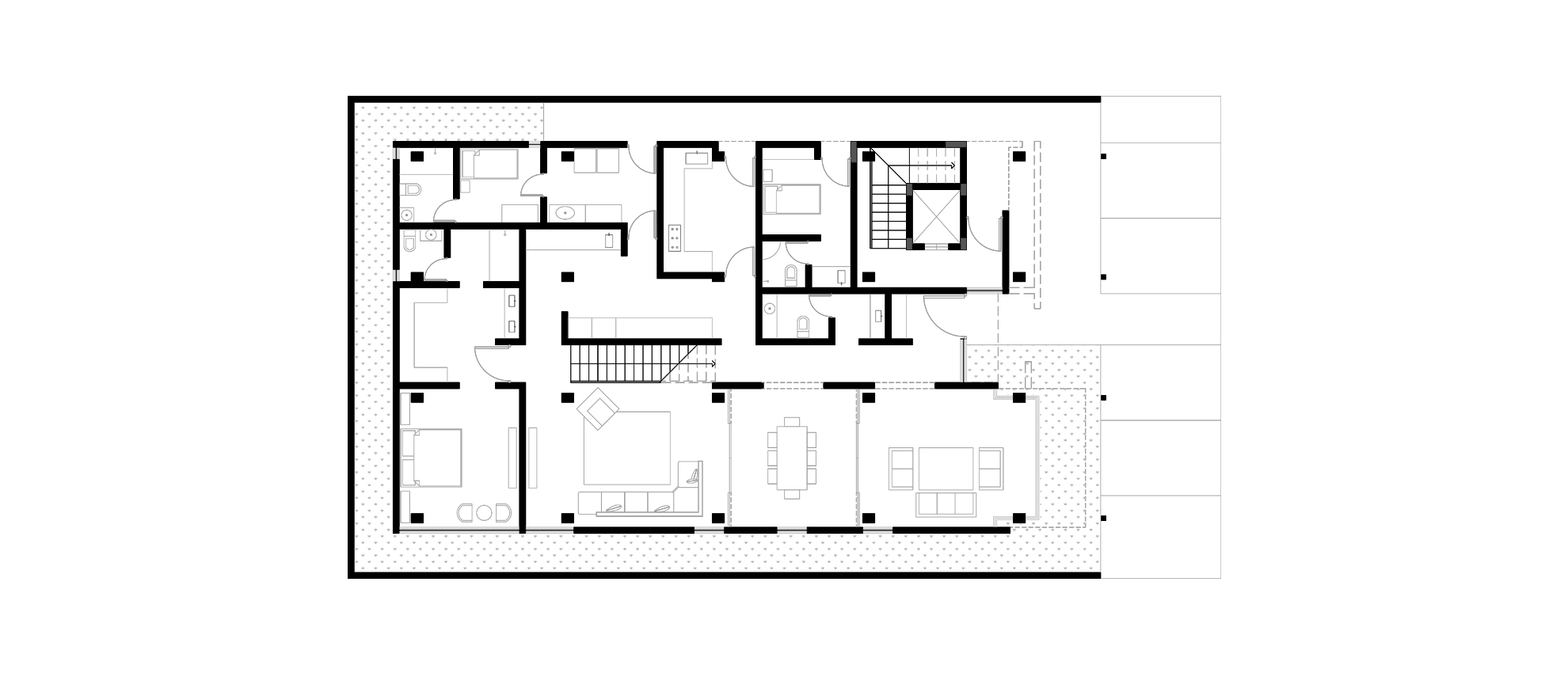

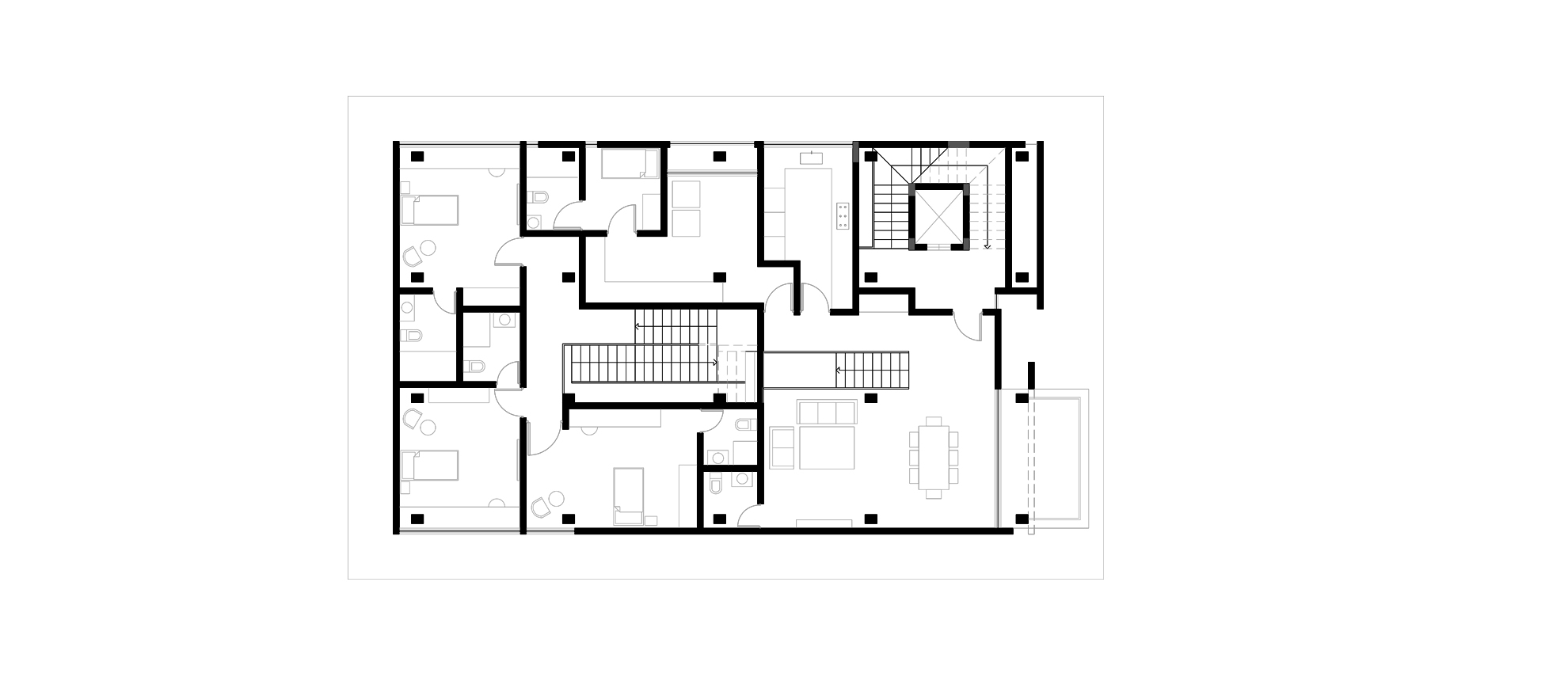

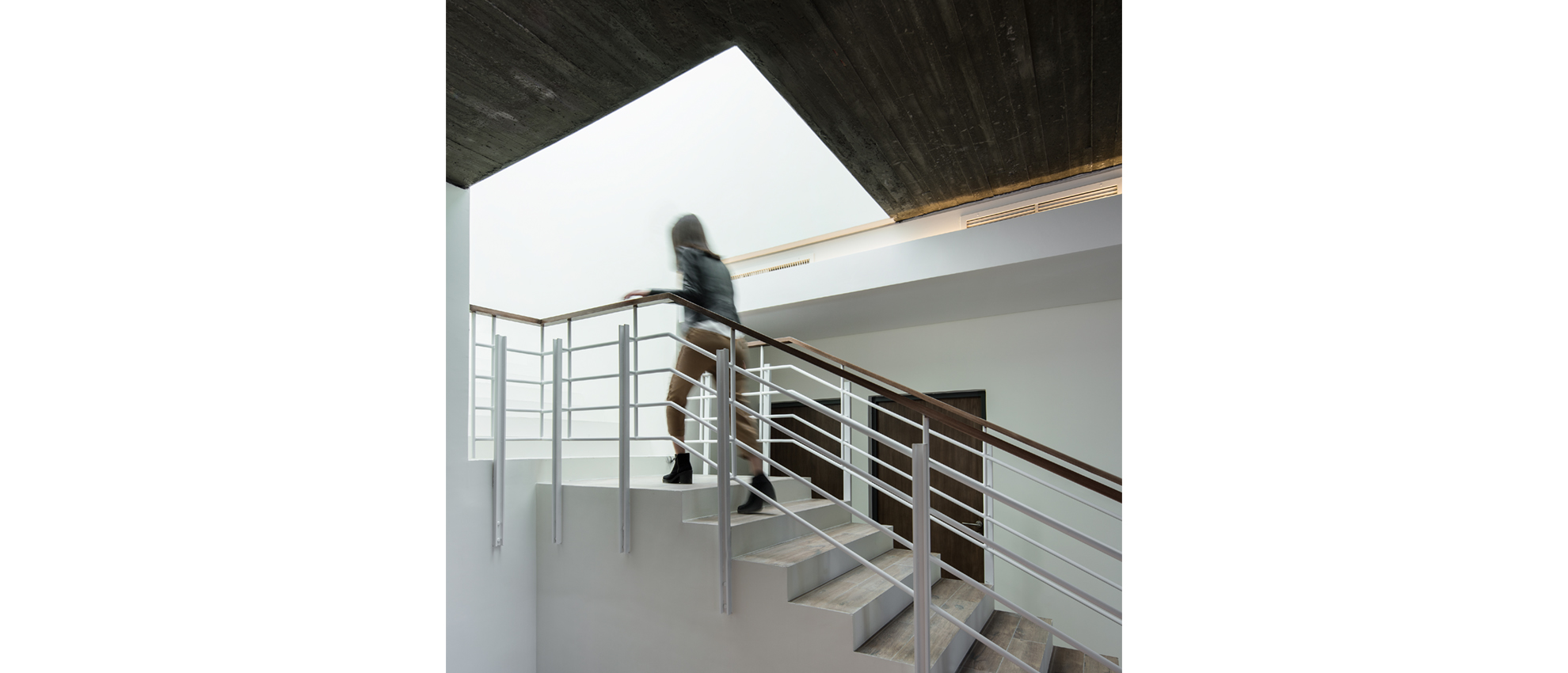

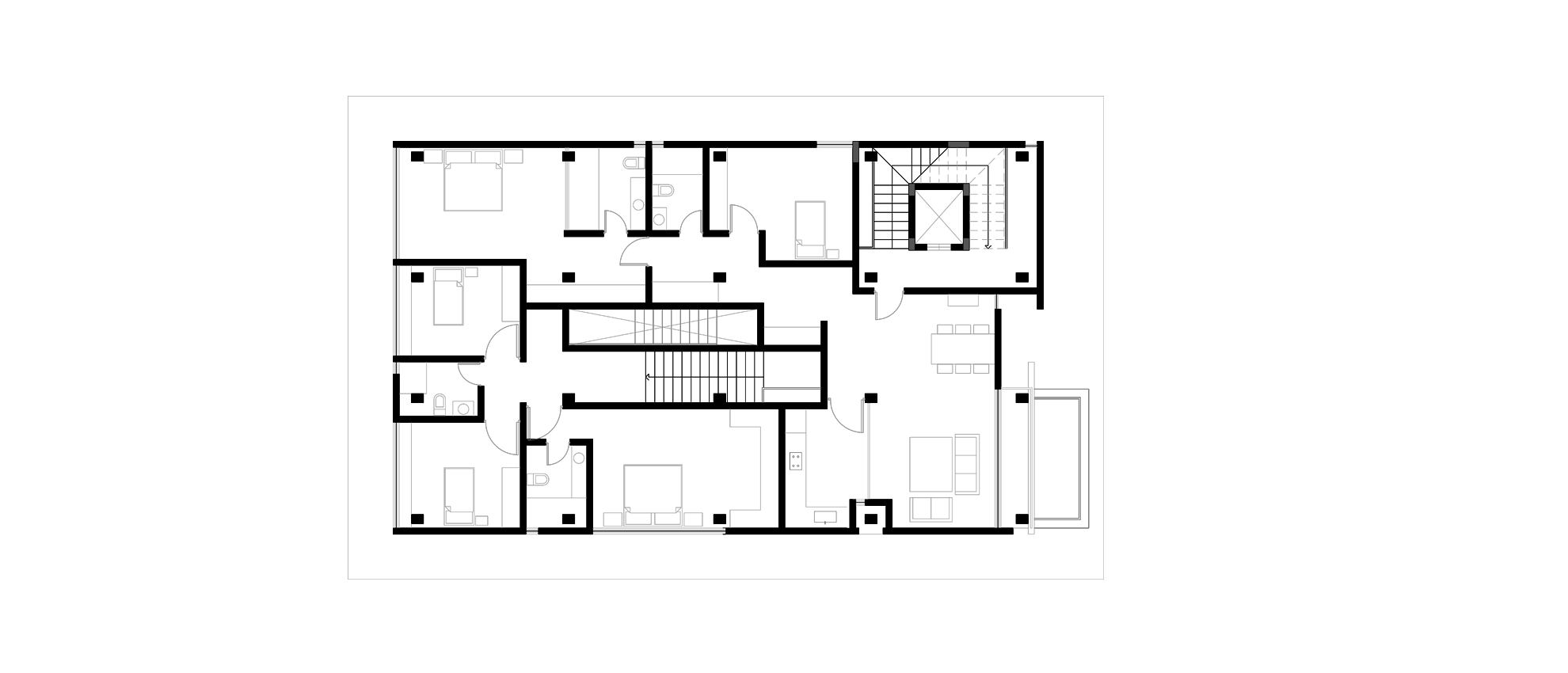

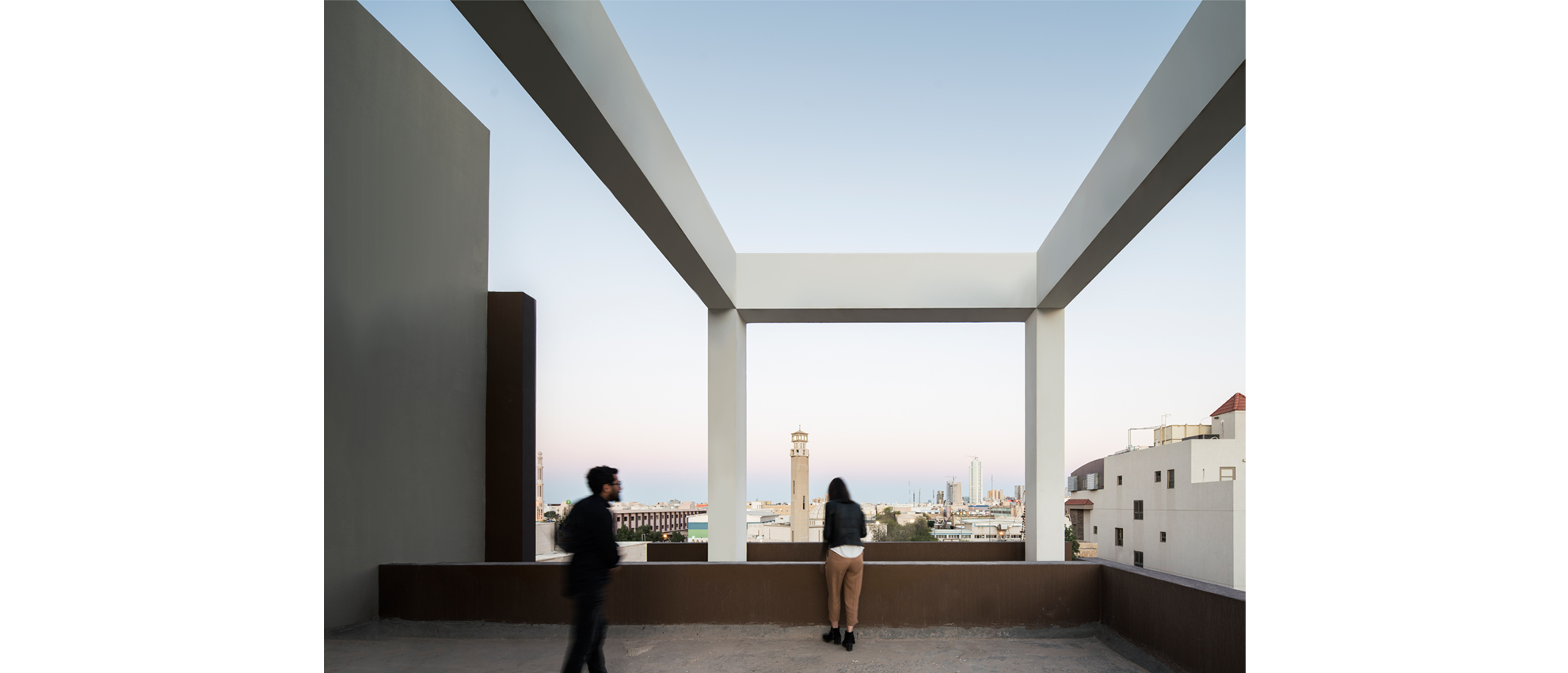

The building consists of a 4 bedroom duplex, a 3 bedroom duplex and 2 bedroom unit with amenities above. There is a sectional quality in this interlocked spatial composition allowing for a back to back light wells that cuts in light through the middle of the mass. One light well brings the light from the roof to the ground-floor duplex and the other shaft lights the first-floor duplex.

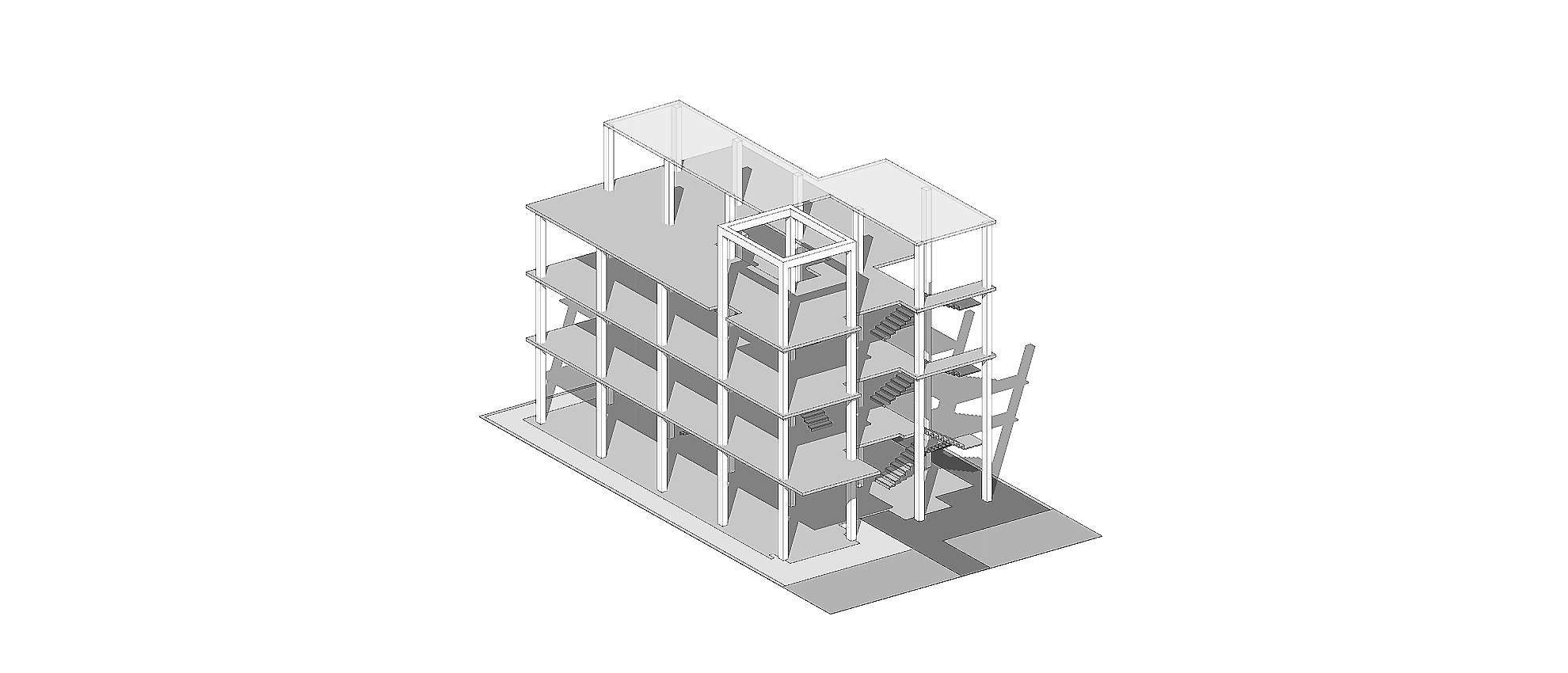

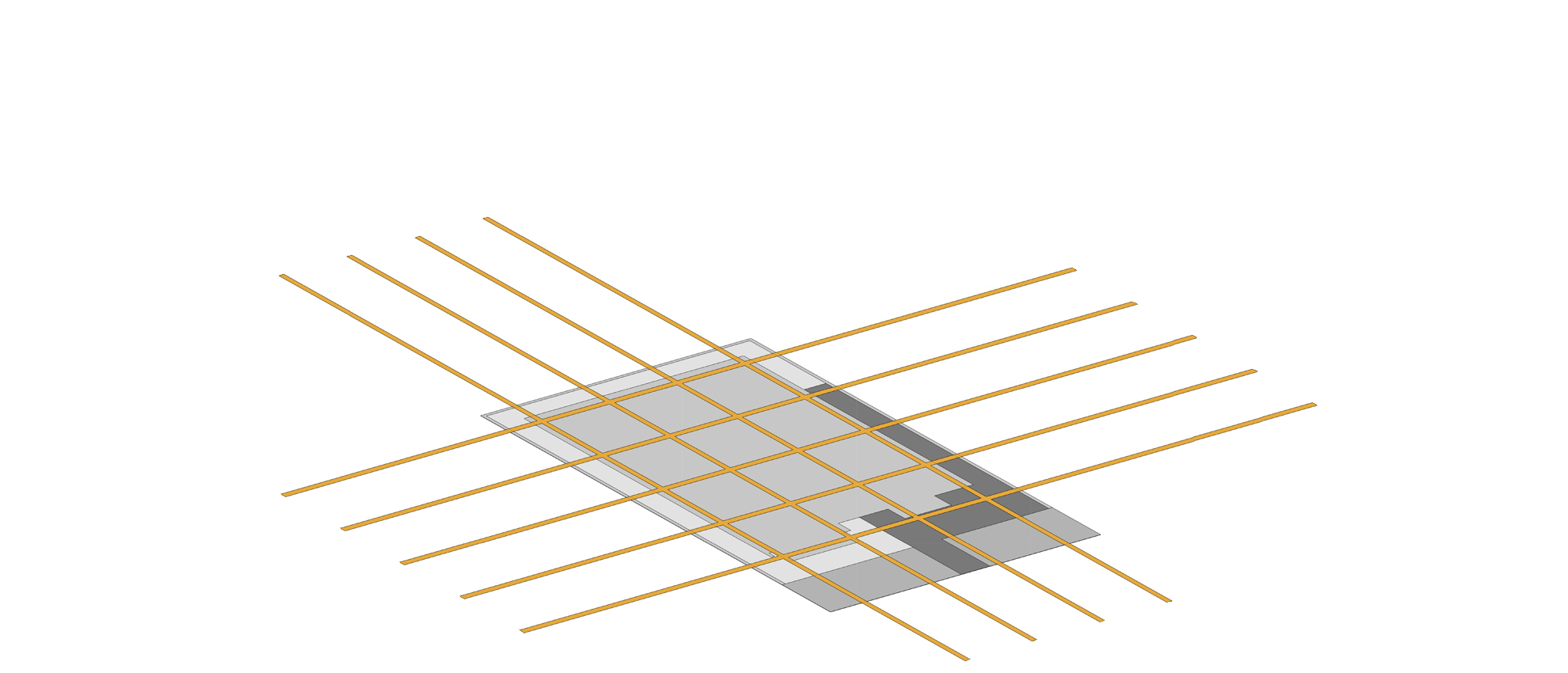

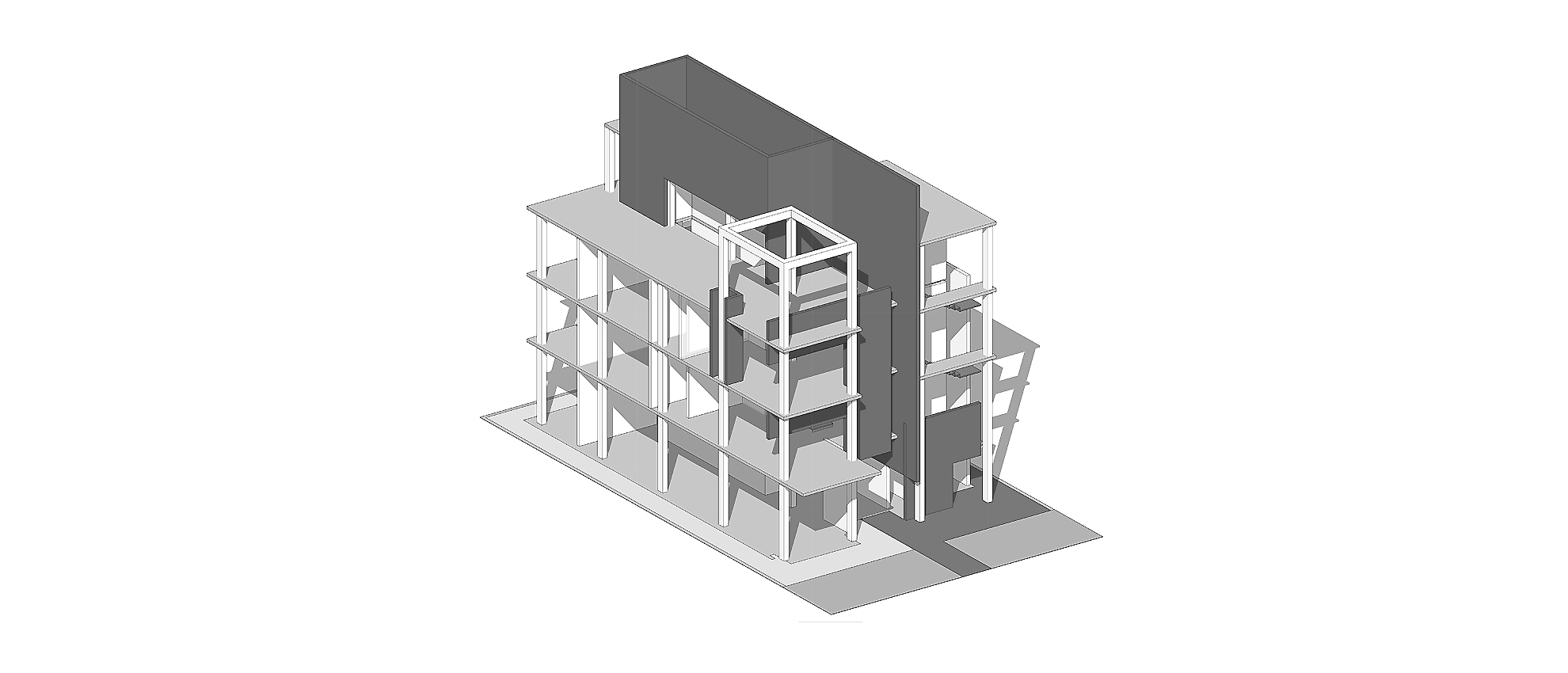

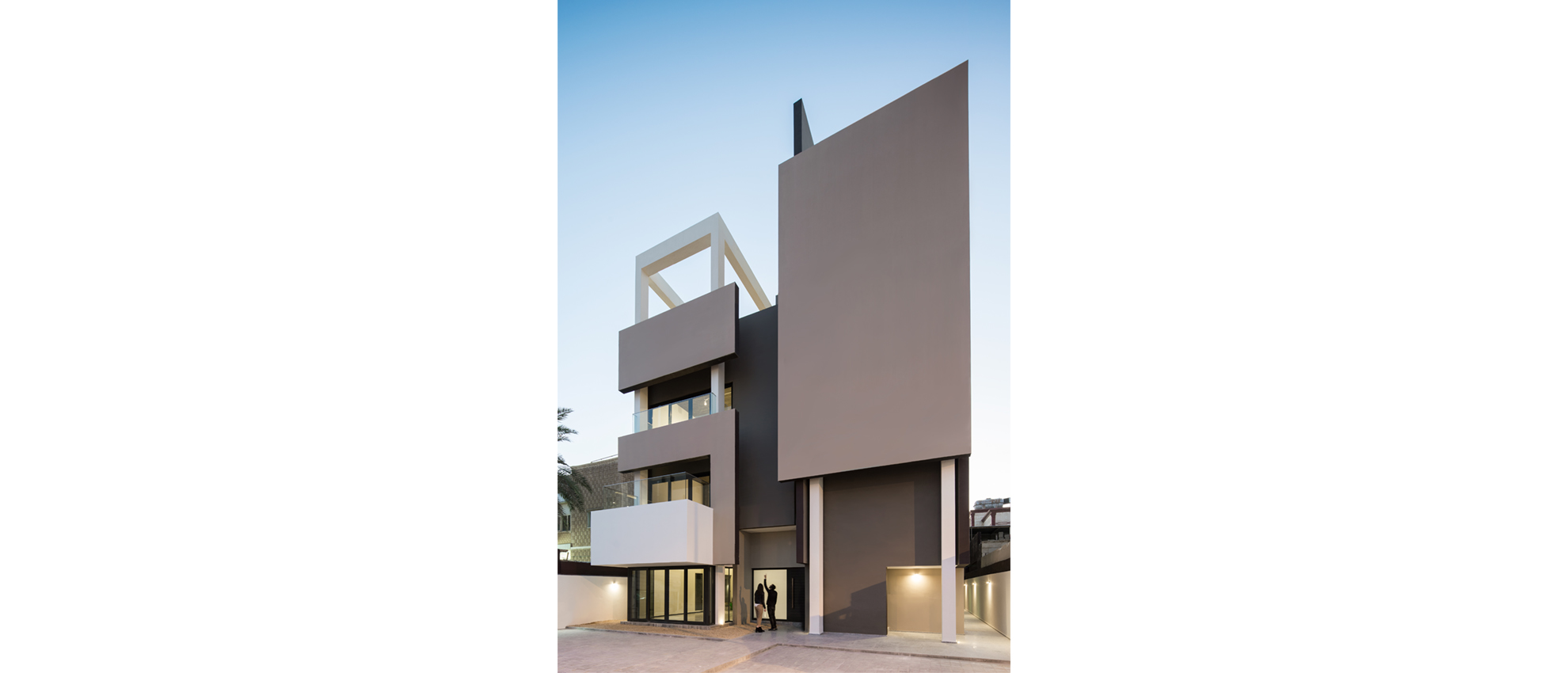

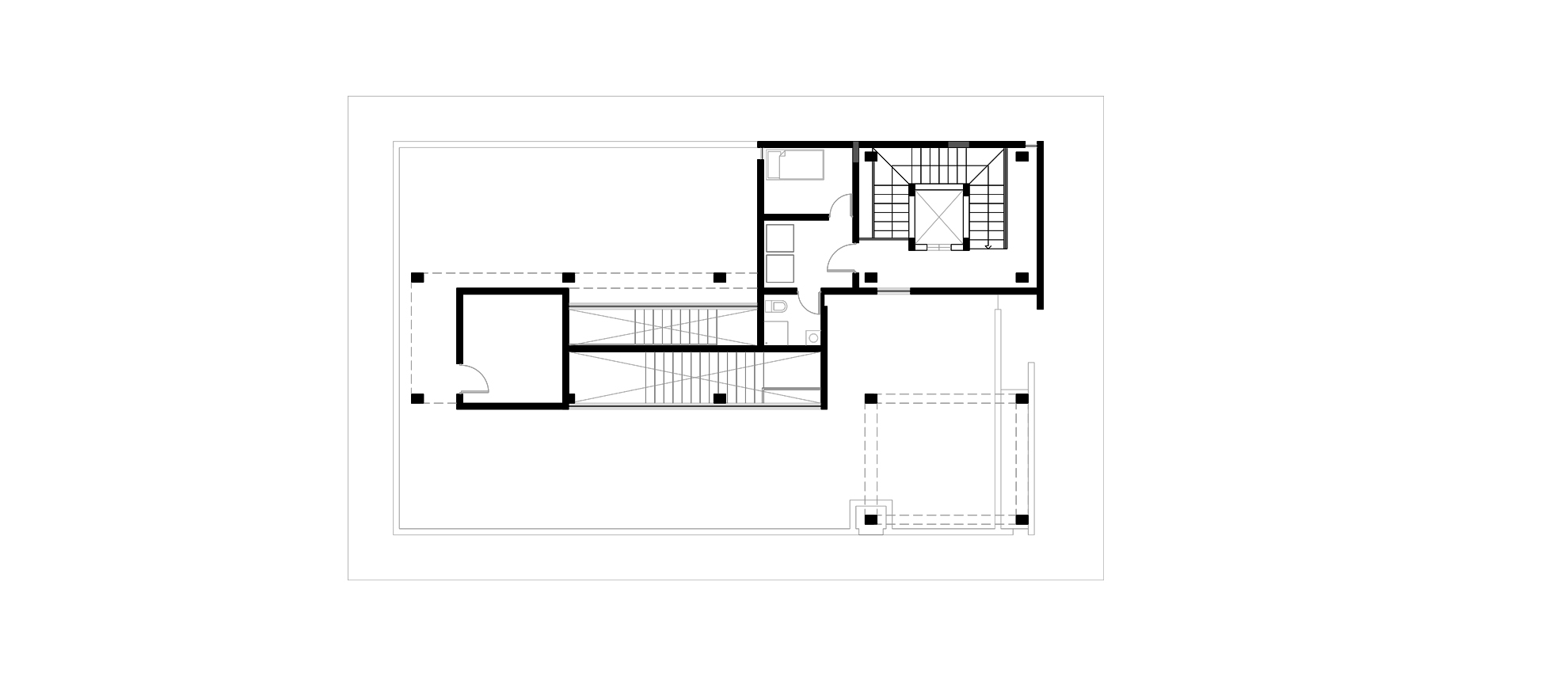

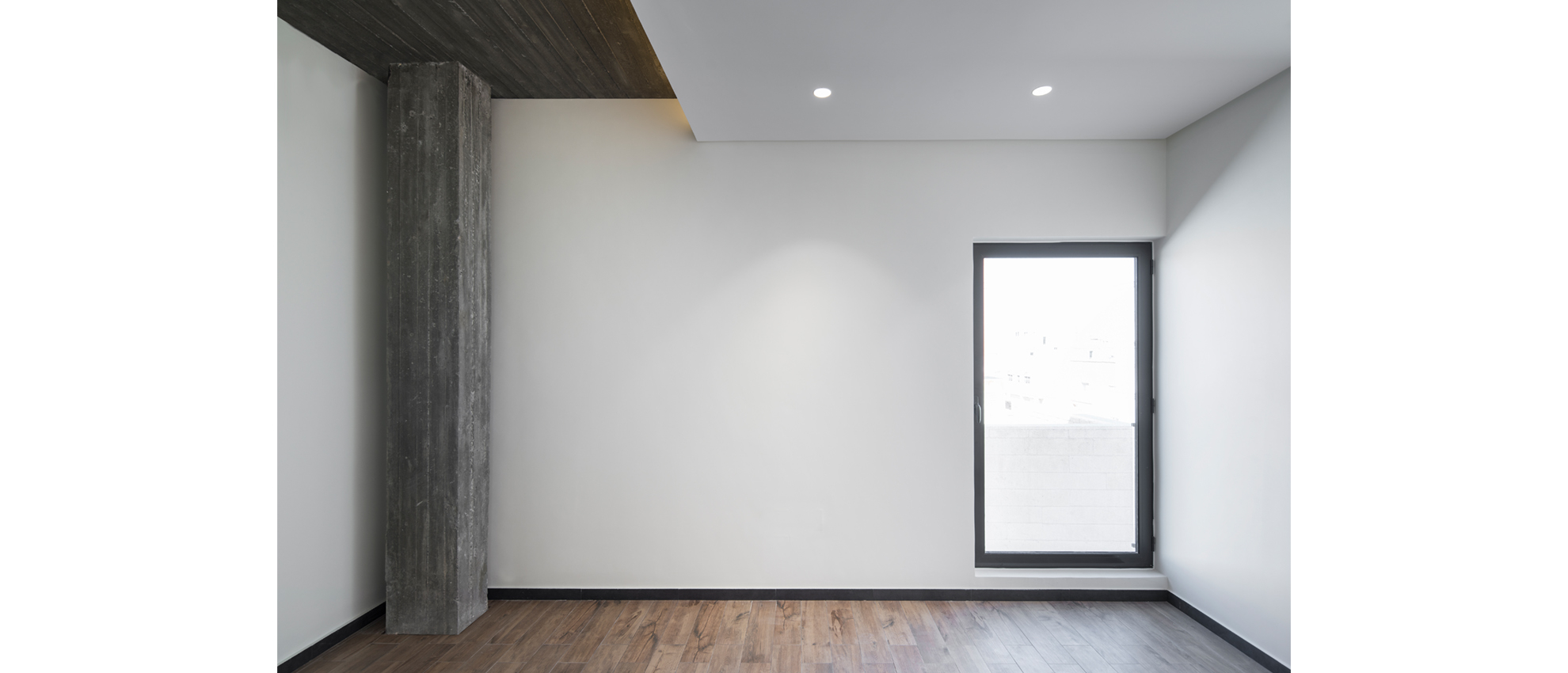

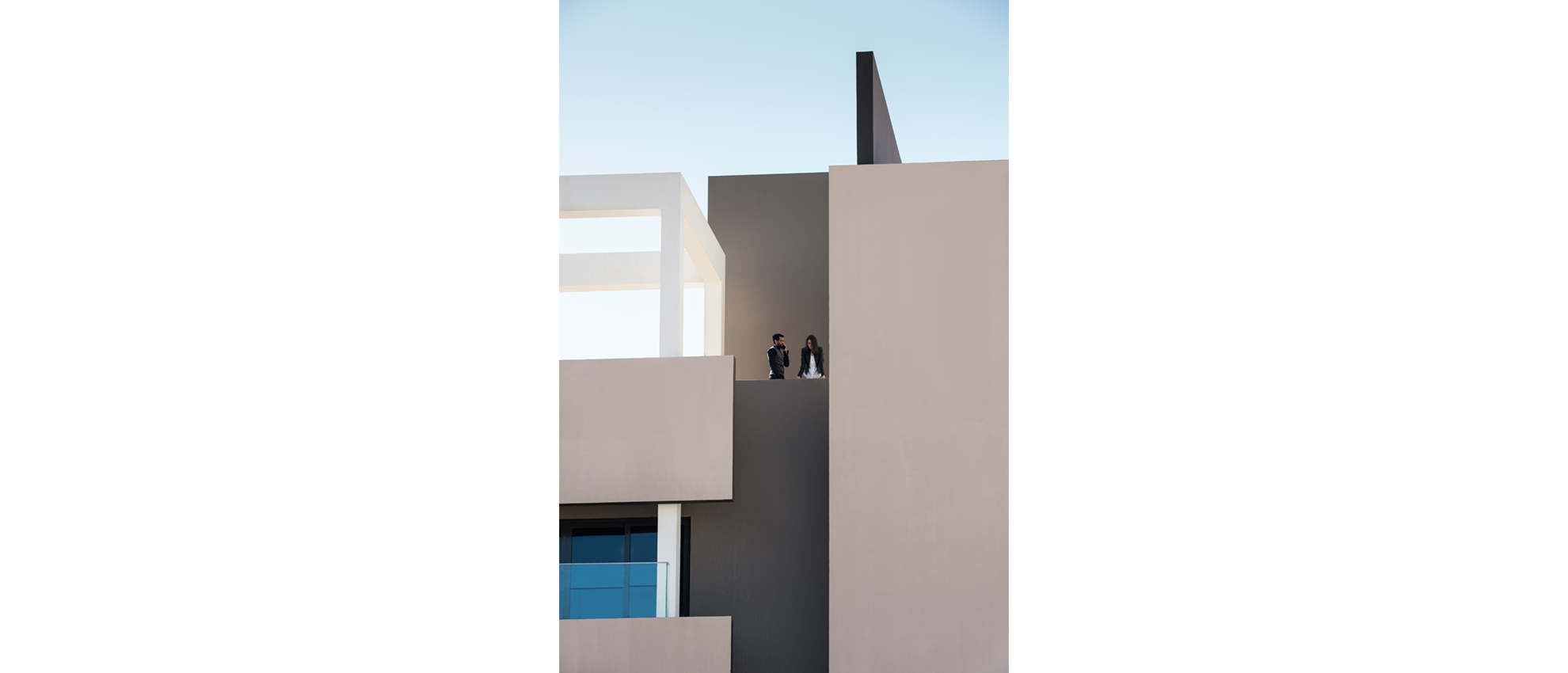

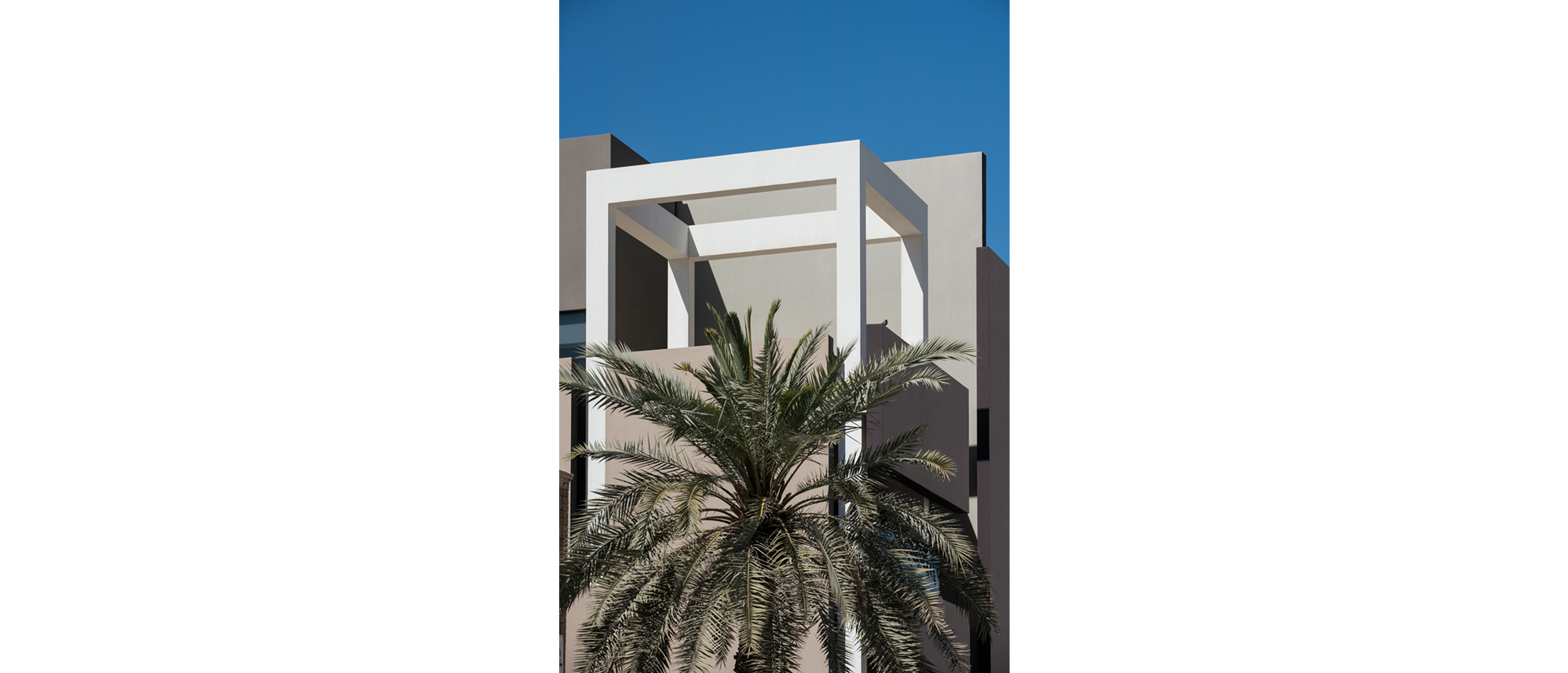

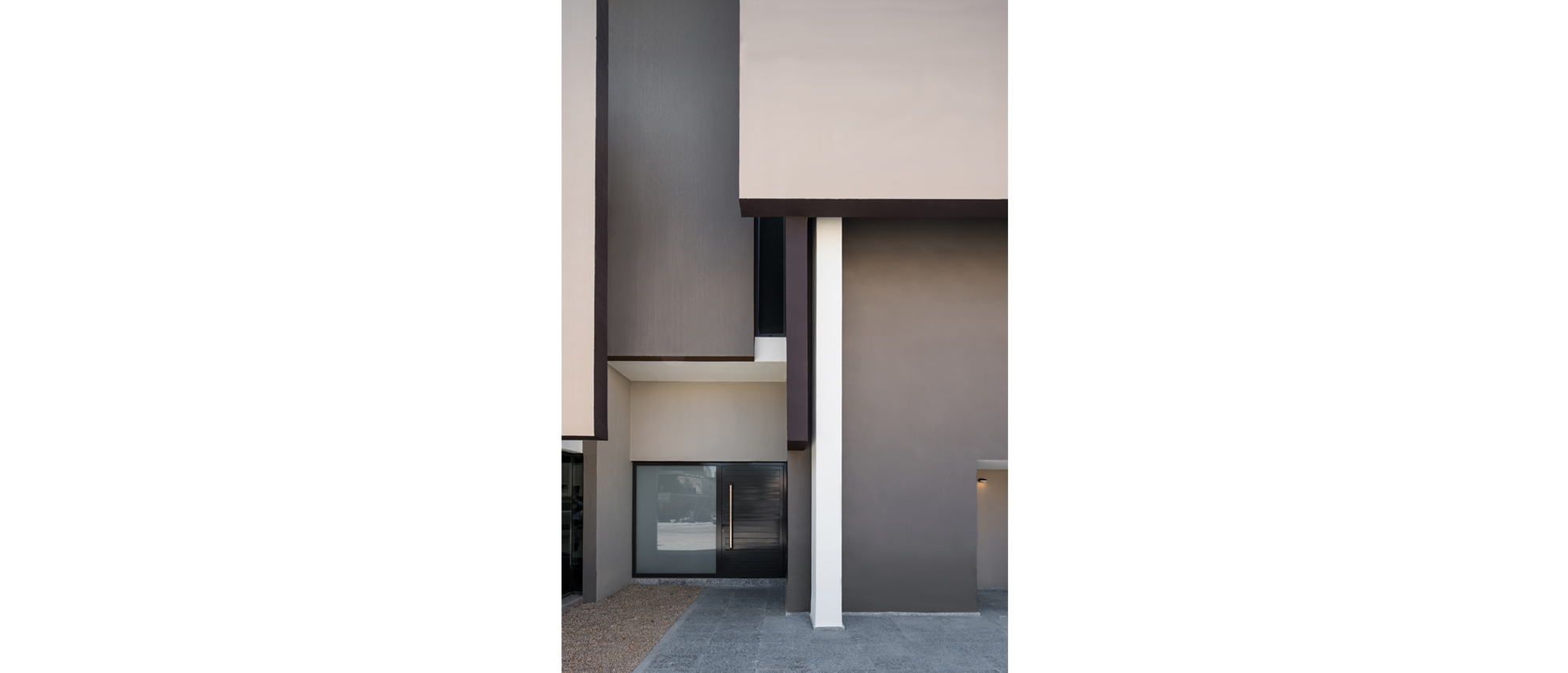

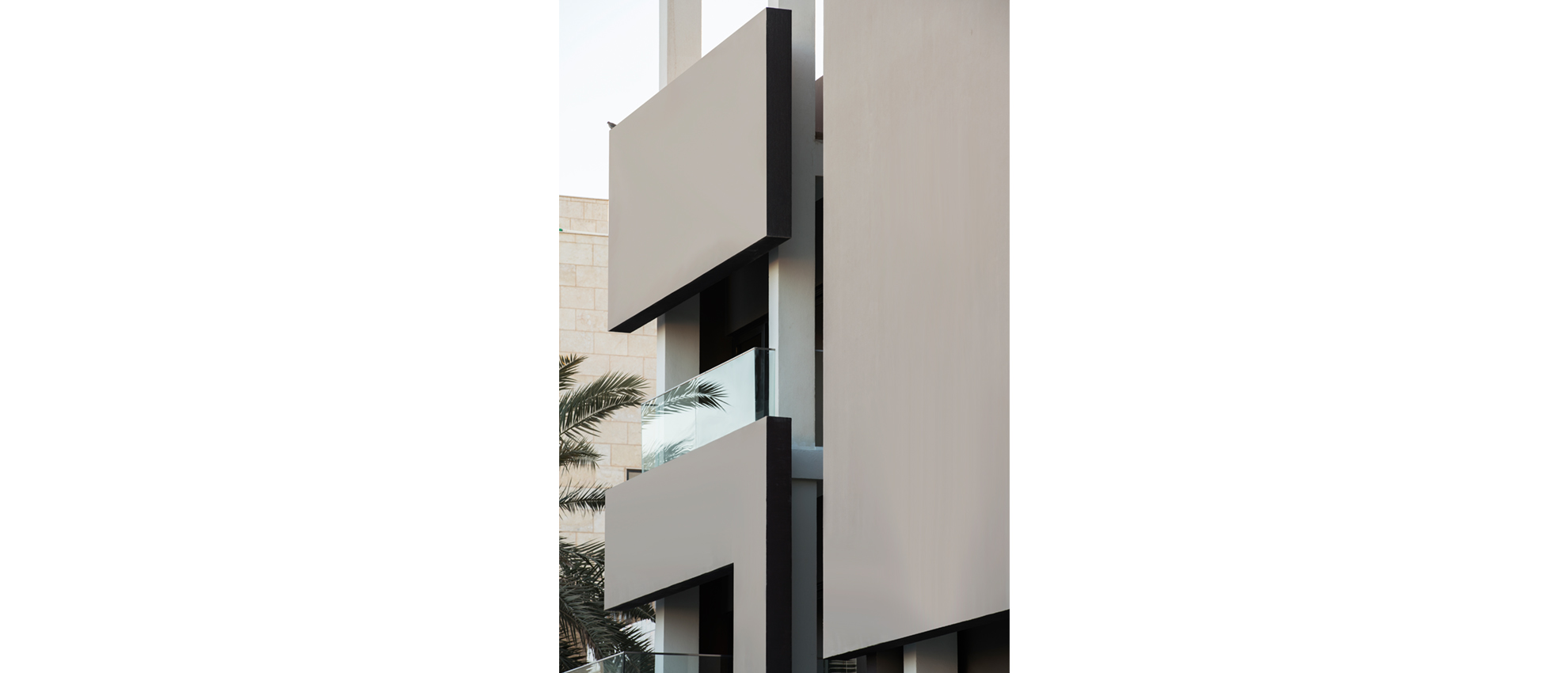

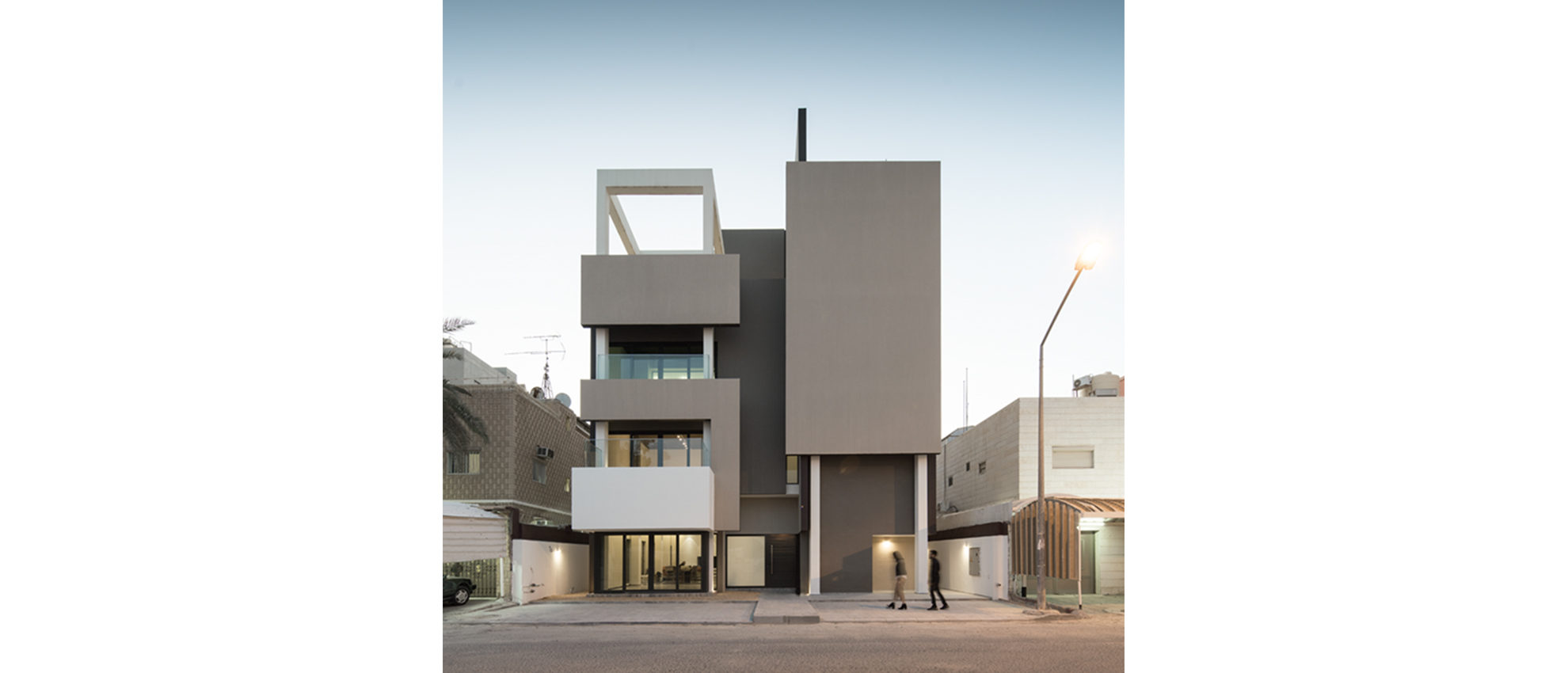

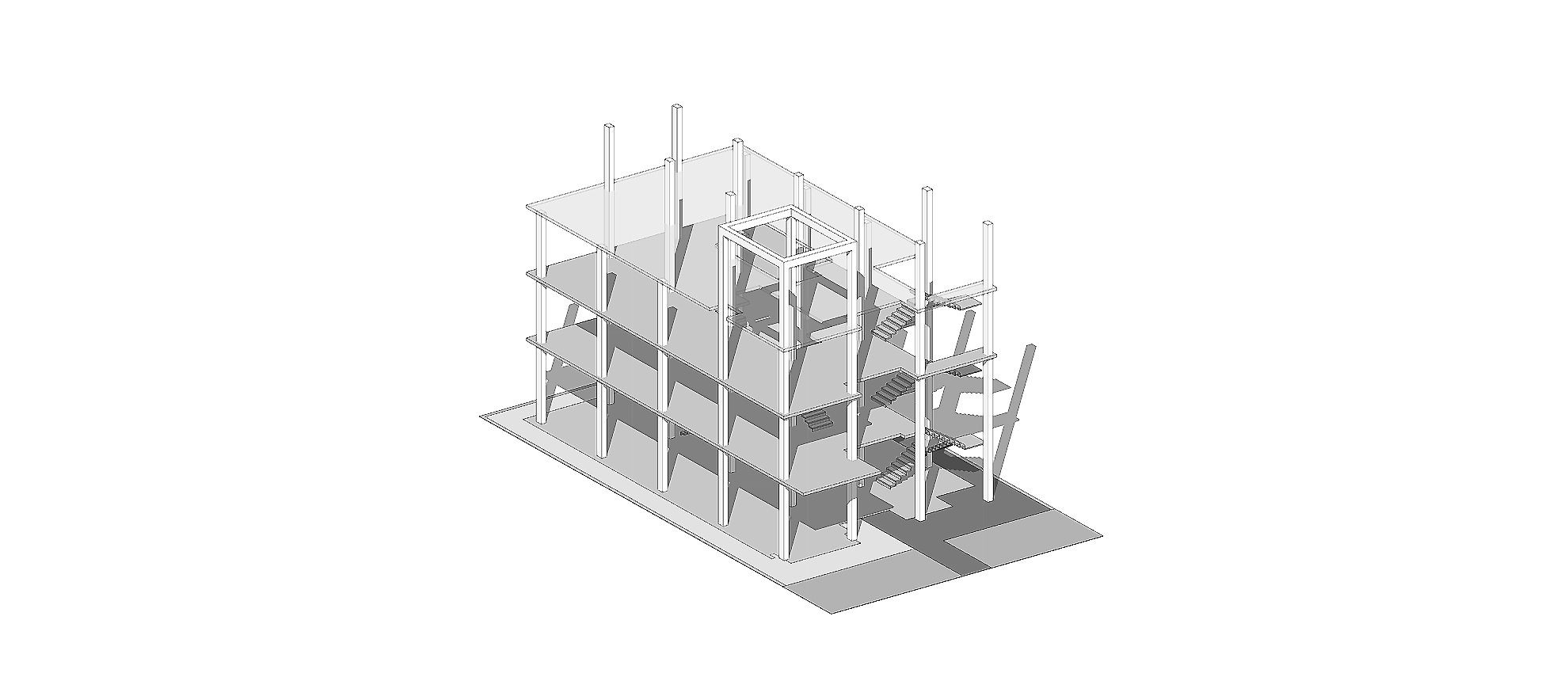

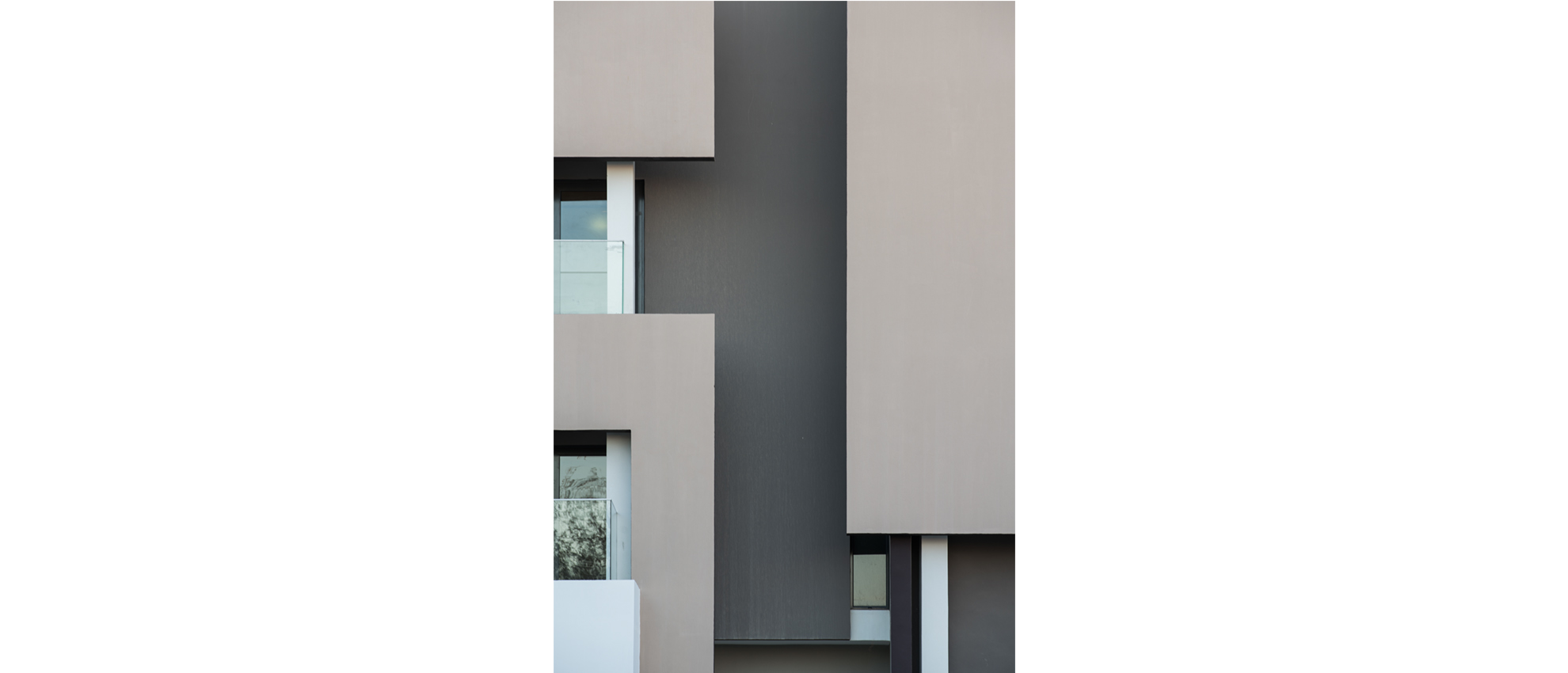

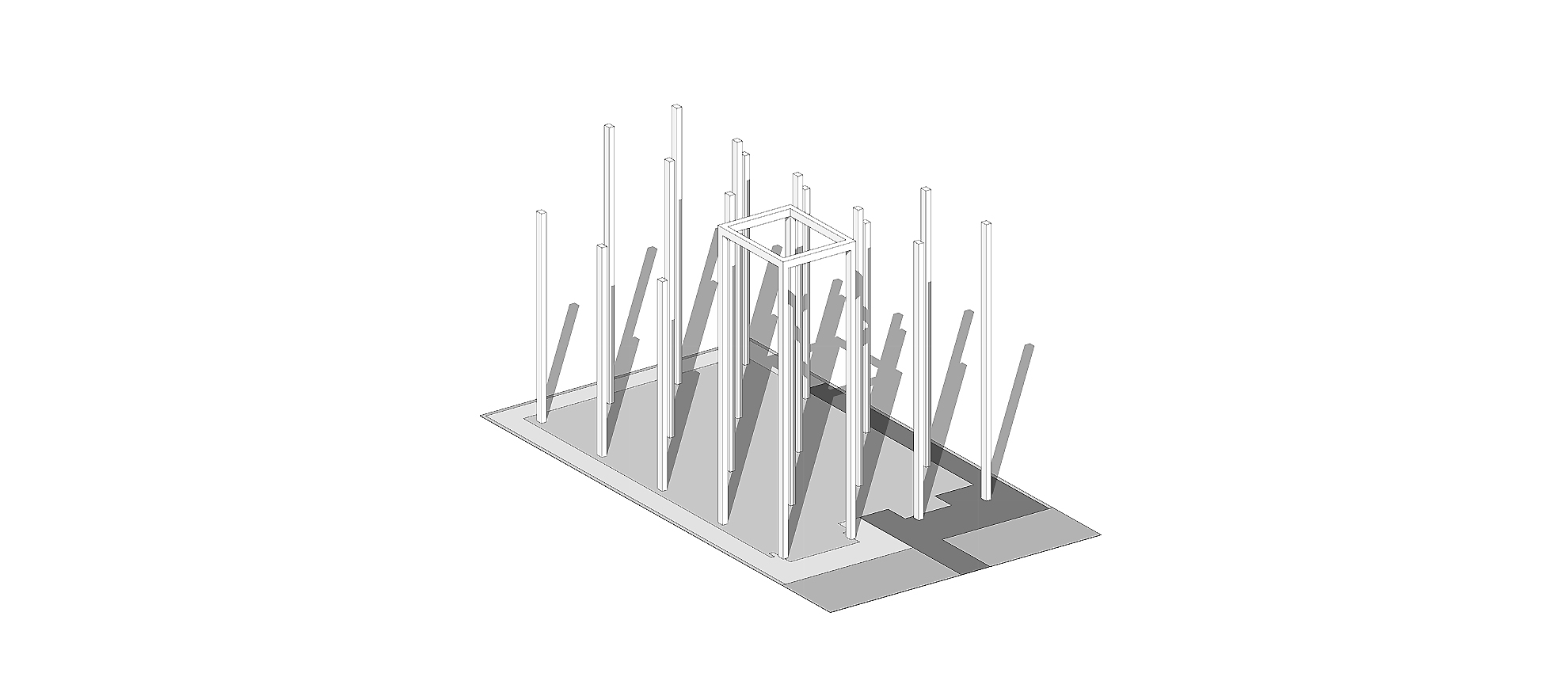

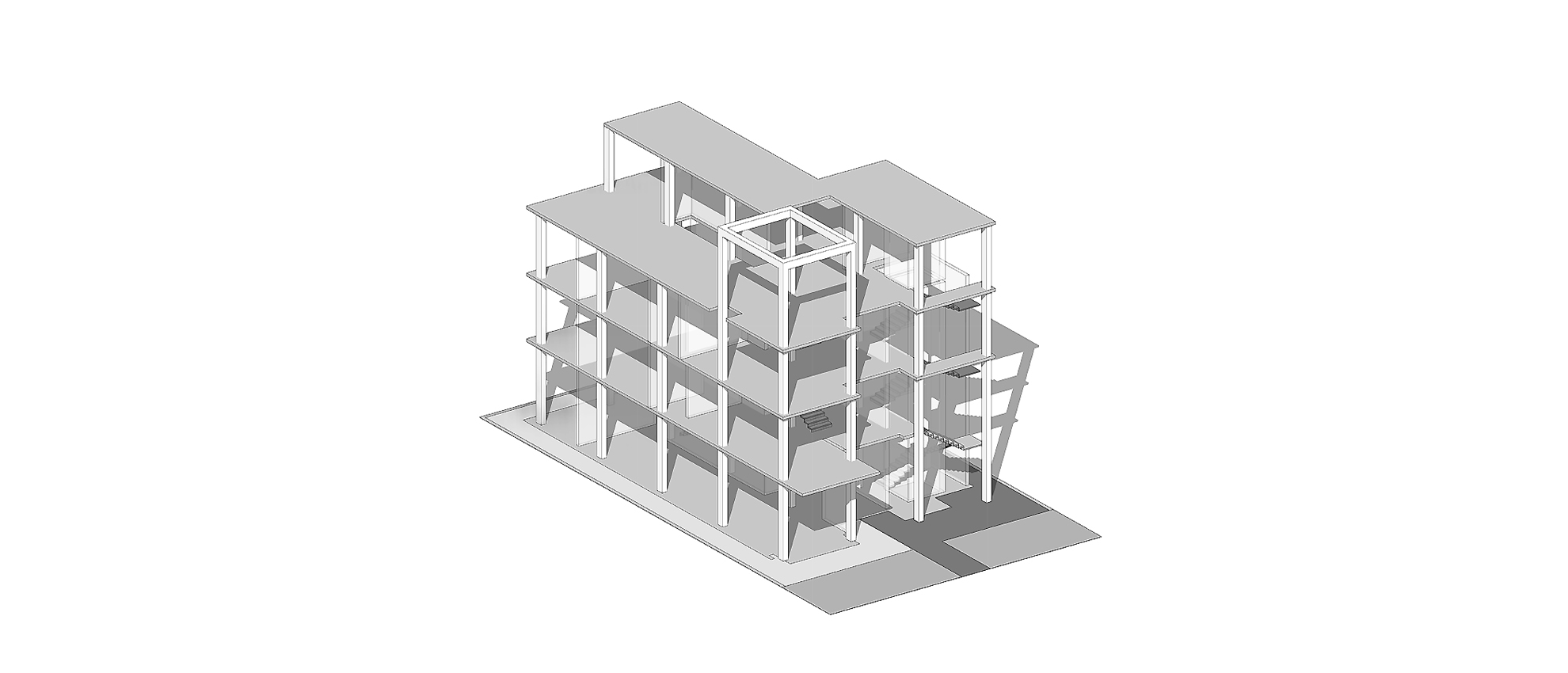

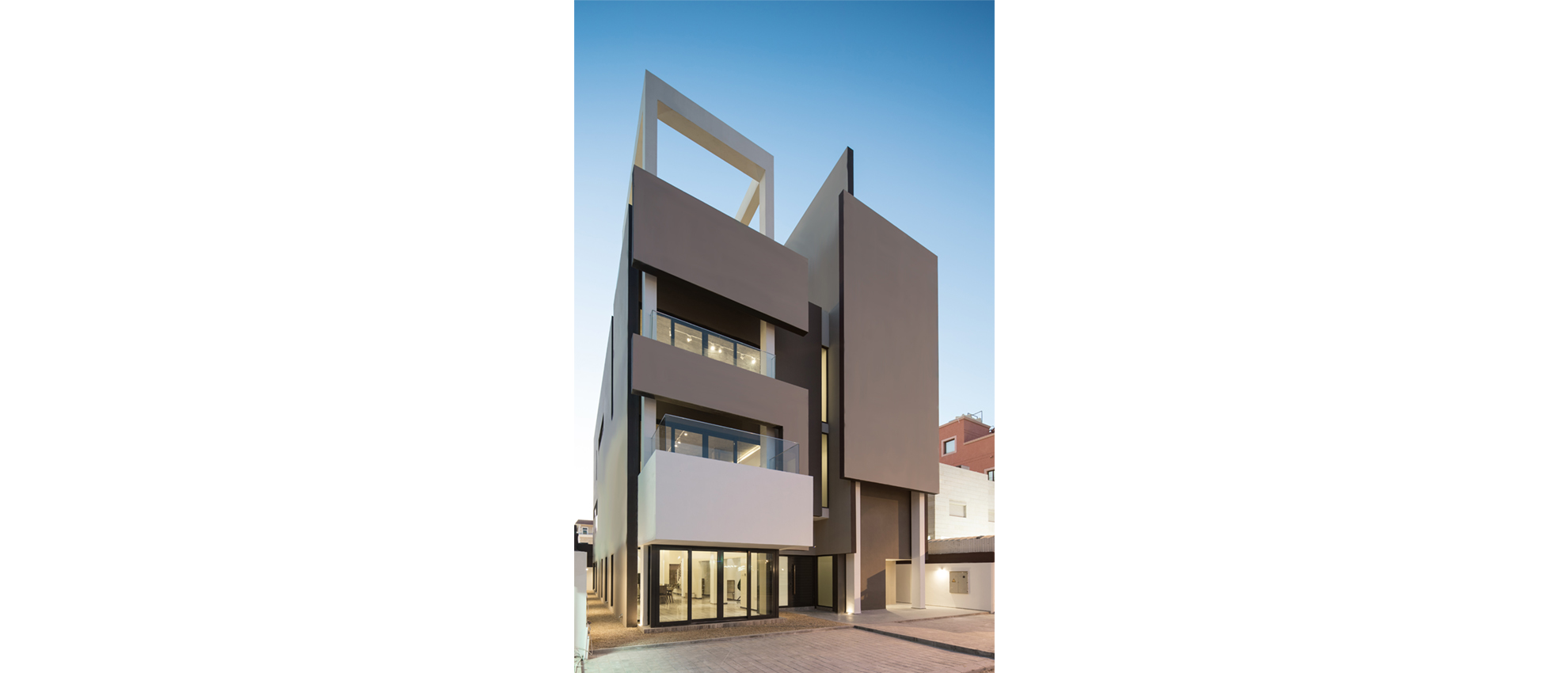

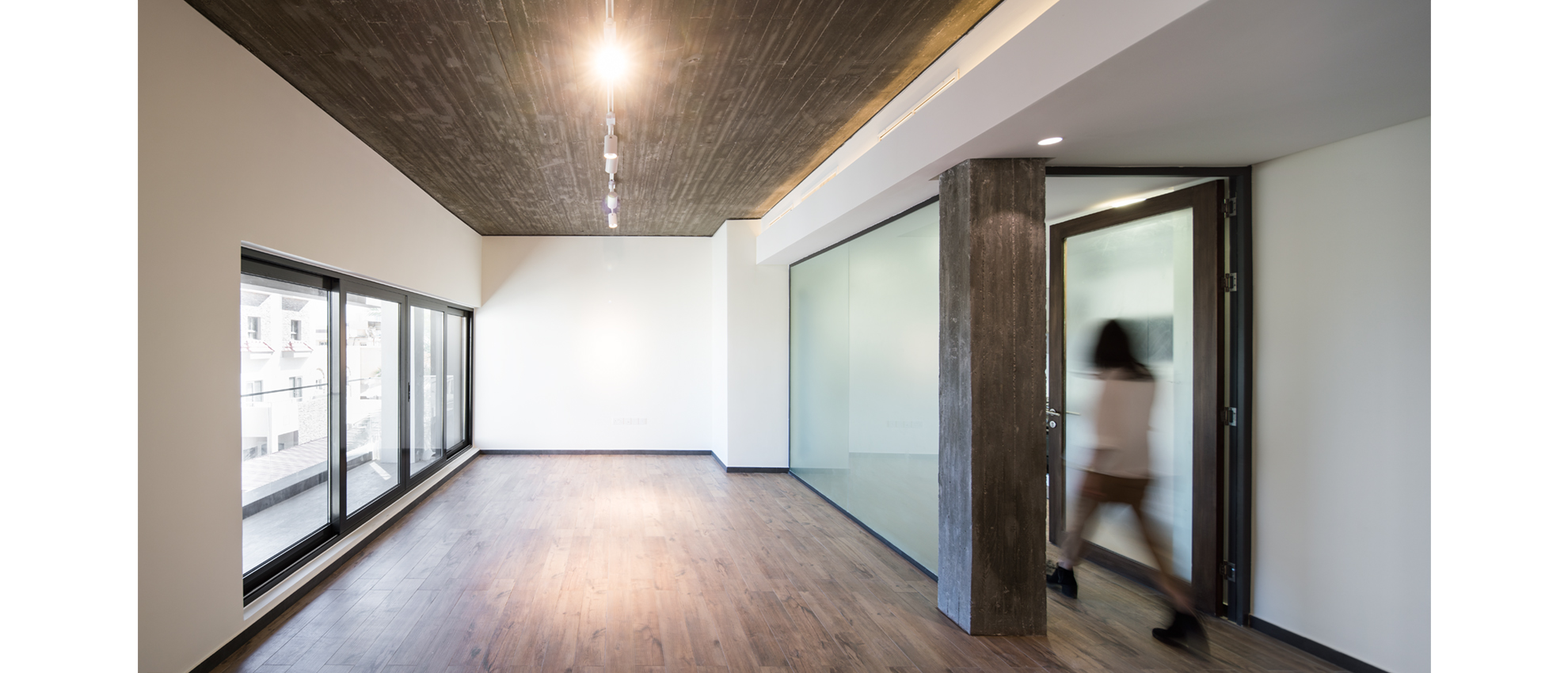

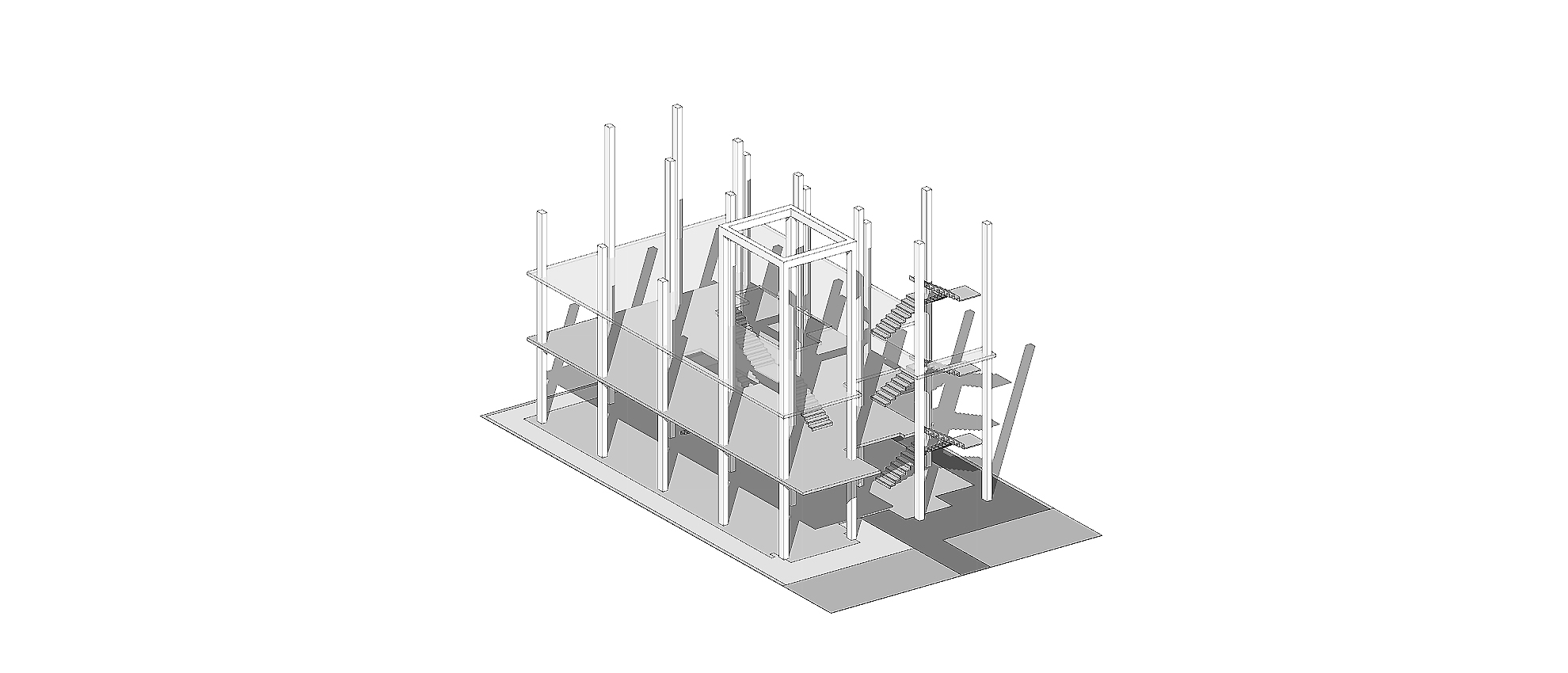

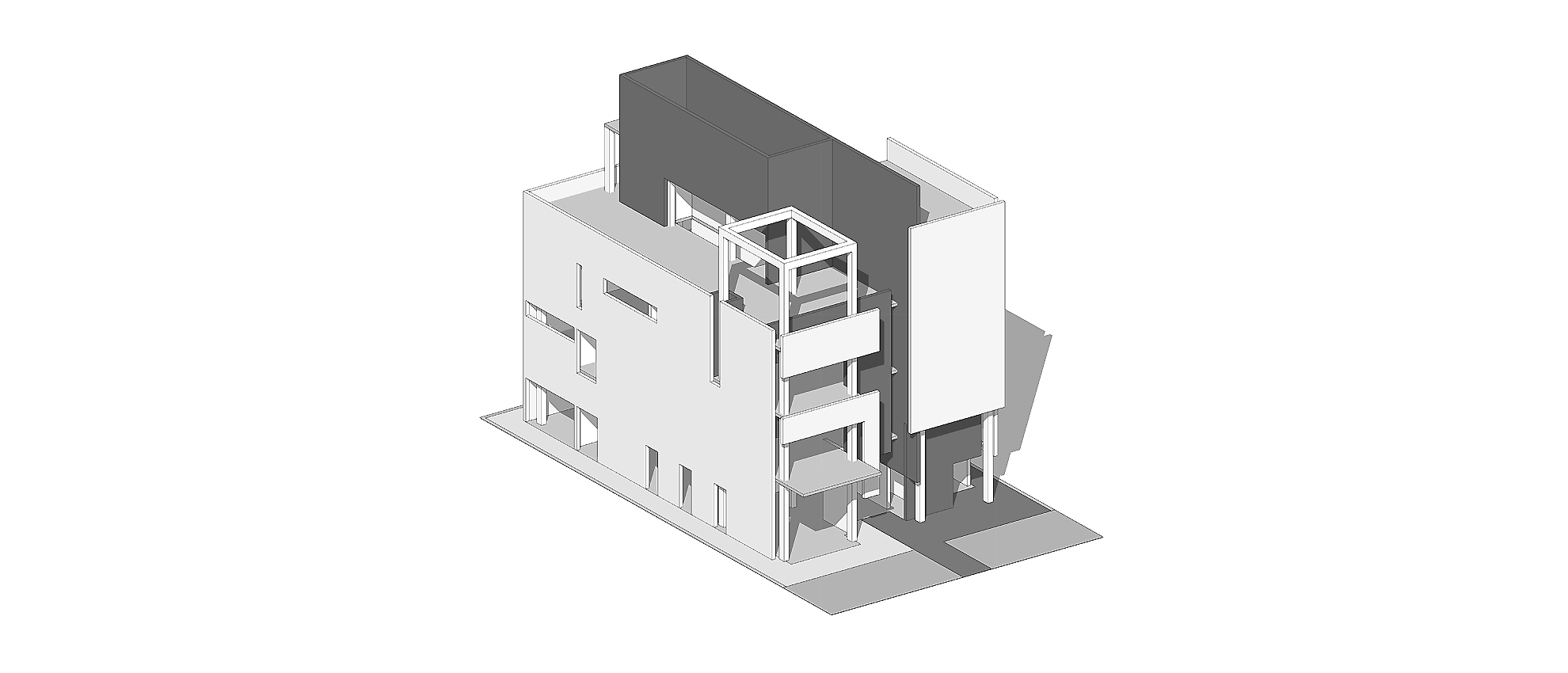

This apartment residence is laid on a 4m by 5m grid of columns. This particular span allowed for a flat-slab system that freed the building from all beams. In addition, this structural system provided the design freedom for the placement/replacement of walls and openings in the elevation. The result is a three stories three apartments building wrapped with a free façade. The colors in the façade emphasizes planes over mass. An interplay of exposed columns, exposed slabs, and free walls sets the tone for overall atmosphere of the projects.
